082-4426-11RFX

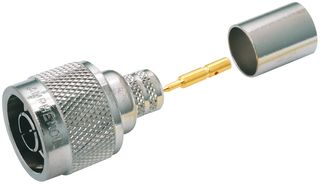

The 82-4426-11RFX is a N-type straight Crimp Plug with gold-plated brass contacts, nickel-plated brass body and a PTFE insulator. N-type connector is designed to satisfy the need for a durable, weatherproof, medium-size RF connector with consistent performance through 11GHz. N-type connector feature threaded coupling mechanisms and is fully interchangeable with N-type connector made to the MIL-C-39012 specification. This connector is used in all systems where excellent RF and mechanical performance is critical. This RF connector is designed for RG-213, RG-214, RG-225, RG-302, RG-393, RG-8, RG-87, RG-8A, RG-9, RG-9A and RG-9B cable.

• Threaded coupling mechanism
• Standard polarity
• Standard thread direction
• 1500V Peak voltage rating
• 5000MΩ Minimum insulation resistance
• 500 Mating cycles

Applications

RF Communications, Communications & Networking, Sensing & Instrumentation, 5G Wireless
