112512
RF / Coaxial Connector, BNC Coaxial, Straight Plug, Crimp, 50 ohm, RG316, Brass

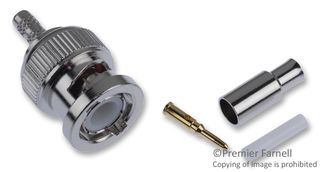

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL RF
Manufacturer Part No112512
Newark Part No.99H4429
Also Known AsB1121EA-ND3G-316UXD-50
Technical Datasheet
571 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $6.840 |
| 10+ | $6.480 |
| 25+ | $5.940 |
| 50+ | $5.690 |
| 100+ | $5.450 |
| 250+ | $4.880 |
| 500+ | $4.760 |
| 1000+ | $4.190 |
Price for:Each
Minimum: 1
Multiple: 1
$6.84
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL RF
Manufacturer Part No112512
Newark Part No.99H4429
Also Known AsB1121EA-ND3G-316UXD-50
Technical Datasheet
Connector TypeBNC Coaxial
Connector Body StyleStraight Plug
Coaxial TerminationCrimp
Impedance50ohm
Coaxial Cable TypesRG316
Contact MaterialBrass
Contact PlatingGold Plated Contacts
Frequency Max4GHz
Connector MountingCable Mount
Product Range-
SVHCLead
Product Overview
The 112512 is a BNC Straight Crimp Plug with gold-plated brass contact. This plug is made of brass with nickel plated finish. It comes with a Delrin insulator. It is suitable for M17/152-RD316, RG-179 DB, RG-188 DB and RG-316 double braided cable.
- Bayonet coupling mechanism
- Standard polarity
- 500 mating cycles Durability
- -40 to 85°C Temperature range
Applications
RF Communications
Technical Specifications
Connector Type
BNC Coaxial
Coaxial Termination
Crimp
Coaxial Cable Types
RG316
Contact Plating
Gold Plated Contacts
Connector Mounting
Cable Mount
SVHC
Lead
Connector Body Style
Straight Plug
Impedance
50ohm
Contact Material
Brass
Frequency Max
4GHz
Product Range
-
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
