                      132454

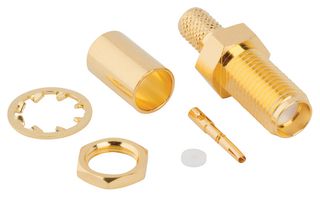

                      RF / Coaxial Connector, SMA Coaxial, Straight Jack, Crimp, 50 ohm, LMR-195, Beryllium Copper

                      AMPHENOL RF 132454
                      Image is for illustrative purposes only. Please refer to product description.
                      ManufacturerAMPHENOL RF
                      Manufacturer Part No132454
                      Newark Part No.59Y6333
                      Product RangeSMA Series
                      Technical Datasheet

                      Data Sheet

                      See all Technical Docs
                      Available to Order
                      Manufacturer Standard Lead Time: 14 week(s)
                      QuantityPrice
                      100+$16.200
                      250+$15.640
                      Price for:Each
                      Minimum: 100
                      Multiple: 1
                      $1,620.00
                      Enter Your Part No/Line Note
                      Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                      This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                      Product Information

                      ManufacturerAMPHENOL RF
                      Manufacturer Part No132454
                      Newark Part No.59Y6333
                      Product RangeSMA Series
                      Technical Datasheet

                      Data Sheet

                      Connector TypeSMA Coaxial
                      Connector Body StyleStraight Jack
                      Coaxial TerminationCrimp
                      Impedance50ohm
                      Coaxial Cable TypeLMR-195
                      Contact MaterialBeryllium Copper
                      Contact PlatingGold Plated Contacts
                      Frequency Max6GHz
                      Connector MountingBulkhead Mount
                      Product RangeSMA Series
                      SVHCLead

                      Product Overview

                      The 132454 from Amphenol RF is a SMA bulkhead rear-mount straight crimp jack RF connector optimized for low loss LMR-195 cables. Low Loss cables provide enhanced shielding with a bonded foil construction ensuring 100% coverage. This connector features a nominal impedance of 50 ohms and offers low return loss from DC to 6 GHz. Provides consistent electrical performance at high frequencies and improved grounding for more stable RF performance. Termination is crimp cable and solder contact, allowing for quick and secure assembly.

                      • High reliability and low signal loss
                      • Improved grounding and enhanced shielding
                      • Quick and secure assembly
                      • Gold plated brass body
                      • Gold plated beryllium copper contacts
                      • PTFE sleeve and insulator
                      • Impedance is 50 ohm
                      • Frequency range DC to 6 GHz
                      • VSWR (return loss) 1.2 max. @ -20.8 dB
                      • 500 mating cycles
                      • Maximum temperature range from -65°C to 165°C

                      Applications

                      RF Communications, IoT (Internet of Things), Telecommunications, 5G Wireless

                      Technical Specifications

                      Connector Type

                      SMA Coaxial

                      Coaxial Termination

                      Crimp

                      Coaxial Cable Type

                      LMR-195

                      Contact Plating

                      Gold Plated Contacts

                      Connector Mounting

                      Bulkhead Mount

                      SVHC

                      Lead

                      Connector Body Style

                      Straight Jack

                      Impedance

                      50ohm

                      Contact Material

                      Beryllium Copper

                      Frequency Max

                      6GHz

                      Product Range

                      SMA Series

                      Technical Docs (3)

                      Technical Data Sheet EN

                      Drawing EN

                      Product Change Notice EN

                      Legislation and Environmental

                      US ECCN:EAR99
                      EU ECCN:Unknown
                      RoHS Compliant:Y-Ex

                      RoHS

                      RoHS Phthalates Compliant:Yes

                      RoHS

                      SVHC:Lead
