000-27000
RF / Coaxial Connector, MHV Coaxial, Straight Jack, Solder, Beryllium Copper

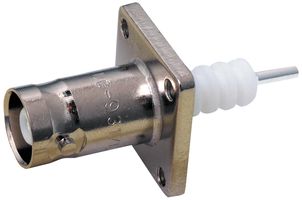

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL RF
Manufacturer Part No000-27000
Newark Part No.73K1420
Also Known As27000, UG-931/U
Technical Datasheet
1,808 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $31.950 |
| 5+ | $30.140 |
| 10+ | $28.330 |
| 25+ | $26.900 |
| 50+ | $26.220 |
| 100+ | $25.290 |
| 250+ | $23.770 |
Price for:Each
Minimum: 1
Multiple: 1
$31.95
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL RF
Manufacturer Part No000-27000
Newark Part No.73K1420
Also Known As27000, UG-931/U
Technical Datasheet
Connector TypeMHV Coaxial
Connector Body StyleStraight Jack
Coaxial TerminationSolder
Impedance-
Coaxial Cable Types-
Contact MaterialBeryllium Copper
Contact PlatingSilver Plated Contacts
Frequency Max50GHz
Connector MountingPanel Mount
Product Range-
SVHCLead
Product Overview
The 27000 is a UG-931/U RF Connector, MHV straight jack with silver-plated beryllium copper contacts, MHV series, solder cup termination, bayonet coupling mechanism and panel mount. Body made up of brass with nickel-plated finish and PTFE insulator.
- 4-hole Flange mounting
- Standard polarity
- Extended dielectric
- -65 to 165°C Temperature range
Applications
RF Communications
Technical Specifications
Connector Type
MHV Coaxial
Coaxial Termination
Solder
Coaxial Cable Types
-
Contact Plating
Silver Plated Contacts
Connector Mounting
Panel Mount
SVHC
Lead
Connector Body Style
Straight Jack
Impedance
-
Contact Material
Beryllium Copper
Frequency Max
50GHz
Product Range
-
Technical Docs (3)
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
