000-27075
RF / Coaxial Connector, MHV Coaxial, Straight Jack, Solder, RG59, RG62, RG71, RG140, RG210

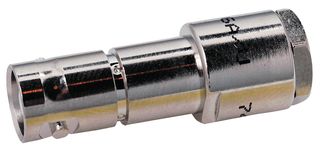

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL RF
Manufacturer Part No000-27075
Newark Part No.51F3816
Also Known As27075, UG-1016A/U
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
| Quantity | Price |
|---|---|
| 100+ | $66.710 |
| 250+ | $63.810 |
Price for:Each
Minimum: 100
Multiple: 1
$6,671.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL RF
Manufacturer Part No000-27075
Newark Part No.51F3816
Also Known As27075, UG-1016A/U
Technical Datasheet
Connector TypeMHV Coaxial
Connector Body StyleStraight Jack
Coaxial TerminationSolder
Impedance-
Coaxial Cable TypesRG59, RG62, RG71, RG140, RG210
Contact MaterialBeryllium Copper
Contact PlatingSilver Plated Contacts
Frequency Max50MHz
Connector MountingCable Mount
Product Range-
SVHCLead
Product Overview
The 27075 is a bulkhead clamp MHV Straight Jack for use with 8241, 8263, 8279 and 9209 Belden, RG140, RG210, RG59, RG59B and RG62 RF coaxial cables. It has nickel-plated brass body with silver-plated beryllium copper contacts and a PTFE (PTFE) insulator.
- Standard polarity
- Bayonet coupling mechanism
- 500 Mating cycles
- -65 to 165°C Temperature range
Applications
RF Communications, Industrial
Technical Specifications
Connector Type
MHV Coaxial
Coaxial Termination
Solder
Coaxial Cable Types
RG59, RG62, RG71, RG140, RG210
Contact Plating
Silver Plated Contacts
Connector Mounting
Cable Mount
SVHC
Lead
Connector Body Style
Straight Jack
Impedance
-
Contact Material
Beryllium Copper
Frequency Max
50MHz
Product Range
-
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
