28100

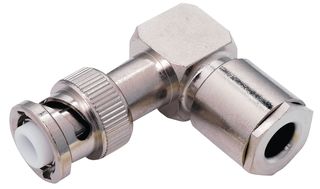

RF / Coaxial Connector, MHV Coaxial, Right Angle Plug, Solder, RG59, RG62, RG71, RG140, RG210
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
| Quantity | Price |
|---|---|
| 100+ | $56.370 |
| 250+ | $50.240 |
Price for:Each
Minimum: 100
Multiple: 1
$5,637.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL RF
Manufacturer Part No28100
Newark Part No.51F3815
Technical Datasheet
Connector TypeMHV Coaxial
Connector Body StyleRight Angle Plug
Coaxial TerminationSolder
Impedance-
Coaxial Cable TypesRG59, RG62, RG71, RG140, RG210
Contact MaterialBrass
Contact PlatingSilver Plated Contacts
Frequency Max50MHz
Connector MountingCable Mount
Product Range-
SVHCLead
Product Overview
The 28100 is a clamp MHV Right Angle Plug for use with 8241, 8263, 8279 and 9209 Belden, RG140, RG210, RG59, RG59B and RG62 RF coaxial cables. It has nickel-plated brass body with silver-plated brass contacts and a PTFE (PTFE) insulator.
- Standard polarity
- Bayonet coupling mechanism
- 500 Mating cycles
- -65 to 165°C Temperature range
Applications
RF Communications, Industrial
Technical Specifications
Connector Type
MHV Coaxial
Coaxial Termination
Solder
Coaxial Cable Types
RG59, RG62, RG71, RG140, RG210
Contact Plating
Silver Plated Contacts
Connector Mounting
Cable Mount
SVHC
Lead
Connector Body Style
Right Angle Plug
Impedance
-
Contact Material
Brass
Frequency Max
50MHz
Product Range
-
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead
