2FA1-NZSP-C30E2

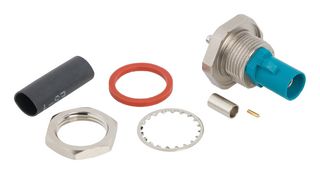

RF / Coaxial Connector, FAKRA Coaxial, Straight Bulkhead Plug, Solder, Crimp, 50 ohm
Image is for illustrative purposes only. Please refer to product description.
194 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $20.050 |
| 5+ | $19.630 |
| 10+ | $18.570 |
| 25+ | $17.180 |
| 50+ | $16.780 |
| 100+ | $15.160 |
| 250+ | $14.330 |
Price for:Each
Minimum: 1
Multiple: 1
$20.05
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL RF
Manufacturer Part No2FA1-NZSP-C30E2
Newark Part No.20AM8594
Connector TypeFAKRA Coaxial
Connector Body StyleStraight Bulkhead Plug
Coaxial TerminationSolder, Crimp
Impedance50ohm
Coaxial Cable TypeDACAR 302, RTK-031, TFC-302LL
Contact MaterialBrass, Beryllium Copper
Contact PlatingGold Plated Contacts
Frequency Max6GHz
Connector MountingCable Mount
Product Range-
SVHCTo Be Advised
Technical Specifications
Connector Type
FAKRA Coaxial
Coaxial Termination
Solder, Crimp
Coaxial Cable Type
DACAR 302, RTK-031, TFC-302LL
Contact Plating
Gold Plated Contacts
Connector Mounting
Cable Mount
SVHC
To Be Advised
Connector Body Style
Straight Bulkhead Plug
Impedance
50ohm
Contact Material
Brass, Beryllium Copper
Frequency Max
6GHz
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
