31-5679

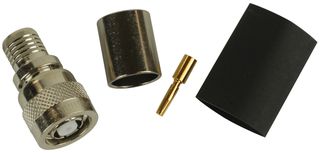

The 31-5679 is a RF Connector, TNC series, TNC straight Crimp Plug with gold-plated beryllium copper contacts and solder contact termination. Body made up of brass with nickel-plated finish and PTFE insulator. The TNC connector series is a miniature, threaded weatherproof series with a constant 50ohm impedance and a frequency range of DC-11GHz. TNC connector is produced with reverse polarity. Reverse polarity is a keying system accomplished with a reverse interface and ensures that reverse polarity interface connectors do not mate with standard interface connectors. Threaded coupling interface ensures connector with not de-couple in vibration-intense applications. This RF connector is designed for Belden 9913, Belden 9914 and LMR-400 cable.

• Standard thread direction
• Durable construction
• 5000MΩ Minimum insulation resistance
• 500V Peak voltage rating
• 500 Mating cycles
• -65 to 165°C Temperature range

Applications

RF Communications, Industrial, Wireless, Defence, Military & Aerospace, Sensing & Instrumentation, Communications & Networking
