Product Information
Product Overview

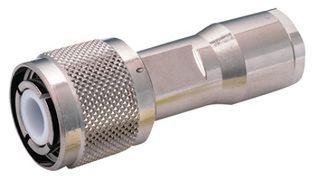

The 82-816-1000 is a HN-type straight Clamp Plug with silver-plated brass body and contacts and a copolymer of styrene insulator. The HN-type connector is medium sized, weatherproof units designed for high voltage applications. This connector features captivated contacts design which prevents contacts recession under extreme temperatures and mechanical stresses. HN connector is capable of handling up to 5000V, making them ideal for use in high power industrial applications from DC to 4GHz. The RF connector is designed for Belden 1152A, Belden 89248, Belden 9290, RG-143, RG-212, RG-54, RG-6 and RG-6A cable.
- Threaded coupling mechanism
- Standard polarity
- Standard thread direction
- 1500V Peak voltage rating
- 5000MΩ Minimum insulation resistance
- 500 Mating cycles
Applications
RF Communications, Sensing & Instrumentation, Test & Measurement, Avionics
Technical Specifications
HN Coaxial
Solder
RG108A
Silver Plated Contacts
Cable Mount
No SVHC (08-Jul-2021)
Straight Plug
50ohm
Brass
4GHz
-
