C016 30D006 110 10
Circular Connector, Internal cable clamping & clamping ring, Circular Industrial

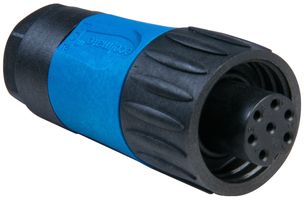

Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMPHENOL SINE/TUCHEL
Manufacturer Part NoC016 30D006 110 10
Newark Part No.23M5614
Product RangeEcomate C016 Series
Technical Datasheet
614 In Stock
Need more?
13 Delivery in 1-3 Business Days(US stock)
601 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $24.680 |
| 5+ | $23.760 |
| 10+ | $22.830 |
| 25+ | $21.540 |
| 50+ | $20.830 |
| 100+ | $19.730 |
| 250+ | $19.390 |
Price for:Each
Minimum: 1
Multiple: 1
$24.68
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerAMPHENOL SINE/TUCHEL
Manufacturer Part NoC016 30D006 110 10
Newark Part No.23M5614
Product RangeEcomate C016 Series
Technical Datasheet
Connector TypeCircular Industrial
Product RangeEcomate C016 Series
Circular Connector Shell StyleCable Mount Receptacle
No. of Contacts6Contacts
Circular Contact TypeSolder Socket
Coupling StyleThreaded
Connector Body MaterialNylon (Polyamide) Body
Connector Body Plating-
Contact Material-
Contact PlatingSilver
SVHCNo SVHC (17-Jan-2023)
Product Overview
The C016 30D006 110 10 is a 6 + PE female Circular Connector with polyamide insert/housing, silver-plated contacts, solder termination and screw locking. Strain relief with cable retention + clamping ring.
- 250V Rated voltage
- 4000V Rated impulse voltage
- ≤5mΩ Contact resistance
- 10A Current carrying capacity
- 0.75mm² Maximum wire gauge
- Neoprene gasket
- IP67/IP65 Protection rating
Applications
Industrial
Technical Specifications
Connector Type
Circular Industrial
Circular Connector Shell Style
Cable Mount Receptacle
Circular Contact Type
Solder Socket
Connector Body Material
Nylon (Polyamide) Body
Contact Material
-
SVHC
No SVHC (17-Jan-2023)
Product Range
Ecomate C016 Series
No. of Contacts
6Contacts
Coupling Style
Threaded
Connector Body Plating
-
Contact Plating
Silver
Technical Docs (3)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
