MAX31856EVSYS#

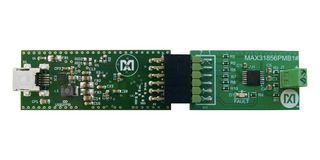

MAX31856EVSYS# is a MAX31856 evaluation system (EV system) that provides the hardware and software necessary to evaluate the MAX31856 thermocouple-to-digital converter. The EV system includes the MAX31856PMB1 peripheral module with a Pmod™-compatible connector for SPI communication. The system also includes the USB2PMB1 adapter board for communication with the software and a K-type thermocouple for temperature sensing. Other thermocouple types (J, N, R, S, T, E, and B) can be evaluated with a user-supplied thermocouple.

• Easy evaluation of the MAX31856
• Includes K-Type thermocouple
• USB power and interface with USB2PMB1 board
• Windows XP®, Windows® 7, Windows 8.1-compatible software
• 12-pin Pmod-compatible connector (SPI)
• Fully assembled and tested
• Proven PCB layout

Contents

MAX31856PMB1 including the MAX31856, USB2PMB1 adapter board, Mini-USB cable, K-Type thermocouple.

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
