MAX5825PMB1#

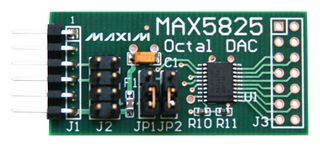

The MAX5825PMB1# is a peripheral module. It provides the necessary hardware to interface the MAX5825 8-channel DAC to any system that utilizes Pmod™-compatible expansion ports configurable for I2C communication. The IC features eight independent 12bit accurate internally buffered voltage-output DAC channels. The IC also features an internal reference that is selectable between 2.048V, 2.500V and 4.096V (4.096V reference operation is not supported with a standard 3.3V Pmod-port power supply). Typical application includes automatic tuning and optical control, gain and offset adjustment, portable instrumentation, process control and servo loops and programmable voltage and current sources.

• Eight high-accuracy DAC channels
• 12bit accuracy without adjustment
• Precision voltage reference internal to the IC
• Provision for optional external reference input
• Jumper-selectable I2C address setting
• 6-pin Pmod-compatible connector (I2C)
• Secondary header allows daisy-chaining of additional modules on the I2C bus
• Proven PCB layout
• Fully assembled and tested

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
