LPQ154-C
AC/DC Enclosed Power Supply (PSU), 4 Outputs, 150 W, 5 V, 15 A, 12 V, 6 A

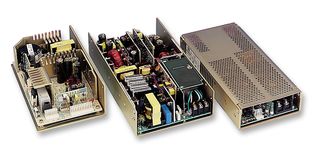

Image is for illustrative purposes only. Please refer to product description.
ManufacturerARTESYN EMBEDDED TECHNOLOGIES
Manufacturer Part NoLPQ154-C
Newark Part No.17B6331
Product RangeLPQ150 Series
Technical Datasheet
No Longer Available
Product Information
ManufacturerARTESYN EMBEDDED TECHNOLOGIES
Manufacturer Part NoLPQ154-C
Newark Part No.17B6331
Product RangeLPQ150 Series
Technical Datasheet
Power Supply ApplicationsITE
No. of Outputs4Outputs
Output Power Max150W
Output Voltage - Output 15V
Output Current - Output 115A
Output Voltage - Output 212V
Output Current - Output 26A
Output Voltage - Output 3-12V
Output Current - Output 32.5A
Output Voltage - Output 424V
Output Current - Output 45A
Input Voltage AC Min85V
Input Voltage VAC85V AC to 264V AC
Input Voltage AC Max264V
Power Supply Output TypeAdjustable, Fixed
Product RangeLPQ150 Series
SVHCNo SVHC (15-Jan-2018)
Product Overview
The LPQ154-C is an AC/DC enclosed Power Supply with auto ranging input and remote sense on main output.
- Remote inhibit
- Single wire current sharing
- Power fail
- Built-in EMI filter
- Low output ripple
- Overvoltage protection
- Overload protection
- 135kHz Switching frequency
- 75% Typical at full load efficiency
- 0.5mA at 50/60Hz and 264VAC input Safety ground leakage current
Applications
Power Management
Technical Specifications
Power Supply Applications
ITE
Output Power Max
150W
Output Current - Output 1
15A
Output Current - Output 2
6A
Output Current - Output 3
2.5A
Output Current - Output 4
5A
Input Voltage VAC
85V AC to 264V AC
Power Supply Output Type
Adjustable, Fixed
SVHC
No SVHC (15-Jan-2018)
No. of Outputs
4Outputs
Output Voltage - Output 1
5V
Output Voltage - Output 2
12V
Output Voltage - Output 3
-12V
Output Voltage - Output 4
24V
Input Voltage AC Min
85V
Input Voltage AC Max
264V
Product Range
LPQ150 Series
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
