LPQ252-CEF
AC/DC Enclosed Power Supply (PSU), 4 Outputs, 250 W, 5 V, 35 A, 12 V, 10 A

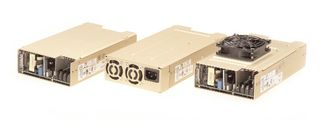

Image is for illustrative purposes only. Please refer to product description.
ManufacturerARTESYN EMBEDDED TECHNOLOGIES
Manufacturer Part NoLPQ252-CEF
Newark Part No.17B6332
Product RangeLPQ250 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 57 week(s)
Product Information
ManufacturerARTESYN EMBEDDED TECHNOLOGIES
Manufacturer Part NoLPQ252-CEF
Newark Part No.17B6332
Product RangeLPQ250 Series
Technical Datasheet
Power Supply ApplicationsITE
No. of Outputs4Outputs
Output Power Max250W
Output Voltage - Output 15V
Output Current - Output 135A
Output Voltage - Output 212V
Output Current - Output 210A
Output Voltage - Output 3-12V
Output Current - Output 36A
Output Voltage - Output 425V
Output Current - Output 46A
Input Voltage AC Min85V
Input Voltage AC Max264V
Power Supply Output TypeAdjustable, Fixed
Product RangeLPQ250 Series
SVHCTo Be Advised
Product Overview
The LPQ252-CEF is an AC/DC enclosed Power Supply with quad output. The 4th output of this AC power adapter is floating and adjustable, there are also 2 supervisory outputs of 5 and 12V. The enclosed AC to DC power supply can be specified with end fan cover.
- Active power factor correction
- Remote sense on main output
- Power fail and remote inhibit
- Single wire current sharing
- Built-in EMI filter
- Overvoltage, overload and thermal overload protection
- DC power good
- 120kHz Switching frequency
- <lt/>0.5mA at 50/60Hz and 264VAC input Safety ground leakage current
Applications
Power Management
Technical Specifications
Power Supply Applications
ITE
Output Power Max
250W
Output Current - Output 1
35A
Output Current - Output 2
10A
Output Current - Output 3
6A
Output Current - Output 4
6A
Input Voltage AC Max
264V
Product Range
LPQ250 Series
No. of Outputs
4Outputs
Output Voltage - Output 1
5V
Output Voltage - Output 2
12V
Output Voltage - Output 3
-12V
Output Voltage - Output 4
25V
Input Voltage AC Min
85V
Power Supply Output Type
Adjustable, Fixed
SVHC
To Be Advised
Technical Docs (2)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
