W1P35X8W04-U100D3B0A
PCB ANTENNA, 2.4-2.48GHZ, 2.8DBI ROHS COMPLIANT: YES

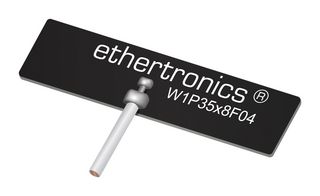

Image is for illustrative purposes only. Please refer to product description.
ManufacturerKYOCERA AVX
Manufacturer Part NoW1P35X8W04-U100D3B0A
Newark Part No.70AH6660
Product RangeW1
Technical Datasheet
1,150 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $5.430 |
| 10+ | $4.220 |
| 25+ | $3.910 |
| 50+ | $3.760 |
| 100+ | $3.590 |
| 500+ | $3.190 |
| 1000+ | $3.090 |
| 2500+ | $2.980 |
Price for:Each
Minimum: 1
Multiple: 1
$5.43
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerKYOCERA AVX
Manufacturer Part NoW1P35X8W04-U100D3B0A
Newark Part No.70AH6660
Product RangeW1
Technical Datasheet
Antenna TypePCB
Frequency Min2.4GHz
Frequency Max2.48GHz
Antenna MountingAdhesive
Gain2.8dBi
VSWR-
Input Power-
Input Impedance50ohm
Antenna Polarization-
Product RangeW1
SVHCNo SVHC (17-Dec-2015)
Technical Specifications
Antenna Type
PCB
Frequency Max
2.48GHz
Gain
2.8dBi
Input Power
-
Antenna Polarization
-
SVHC
No SVHC (17-Dec-2015)
Frequency Min
2.4GHz
Antenna Mounting
Adhesive
VSWR
-
Input Impedance
50ohm
Product Range
W1
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Dec-2015)
