1692 CAL

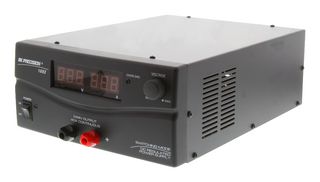

The 1692 CAL from B&K Precision is a 40A high efficiency switching digital DC power supply. It provides high current output in a lightweight and compact package. This power supply is suitable for a variety of uses, especially for powering DC operated mobile radio equipment on the bench. It provides a variable voltage output from 3V to 15V at 40A continuous operation. In addition a fixed 13.8VDC output is also selectable by a slider switch. Switching mode power supplies have the advantage of lightweight and high efficiency when compared to traditional linear mode power supplies. The efficiency can exceed 80% under the best conditions. Advanced circuitry protects against overload and provides immunity from RFI. A bright red and green LED display provides for an accurate and highly readable indicator of settings.

• Calibrated switching digital DC power supply
• Current fold back circuitry with illuminated indicator prevents overloading the power supply
• Overload, overtemperature and overvoltage protection
• High protection circuitry against RFI (radio frequency interference) provides stable operation
• Ripple and noise of less than 10mVrms
• Line regulation (120V ±10%) of 80mV and load regulation (0 to 100% load) of 230mV
• 120VAC, 60Hz AC input, dual colour digital LED
• Dimension is (H x W x D) 8.67” x 4.33” x 11.82" (220mm x 110mm x 300mm) and weight is 3.5Kg

Applications

Test & Measurement

Contents

1692 switching digital DC power supply, User manual, Power cord.

Warnings

Do not use the unit for lamps or motorized equipment which require high current input at starting and it may damage the unit.

Notes

Do not place the unit close to TV sets or CRT monitor.
