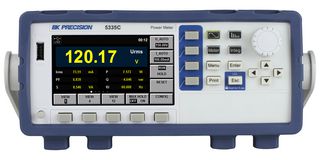

5335C

5335C compact, single-phase AC / DC power meter for measuring and analysing power consumption and power quality parameters quickly and accurately. It features standard USB (USBTMC-Compliant), RS232 and LAN interfaces, line and frequency filter capability for reducing unwanted signal noise. Suitable for measure power, Electrical energy bought or sold back to the power grid, inverters, harmonics of motors, un-interruptible power supplies, appliances and consumer electronics applications.

• 600 VRMS ( Cat II ) and 20ARMS direct input ranges
• Frequency ranges DC, 0.5Hz to 100KHz
• 0.1% basic accuracy for voltage and current measurements
• 4.3" colour LCD (TFT)
• Simultaneously measure and display up to 12 measurement parameters
• Capture inrush current and voltage surge with the peak function
• Harmonic measurements to the 50th order
• Integration function with automatic range switching
• Ability to measure electrical energy which is produced or consumed
• Pre-compliance testing according to IEC/EN 62000-3-2 / 4-7

Contents

AC / DC power meter, Started manual, Instruction manual, AC power cord, USB type A-to-type B cable, Certificate of calibration.
