S15S-TH-MQ
Temperature Sensor, 0% to 100% Relative Humidity, 7%, 10 to 30 VDC, Connector, RS485, S15S Series

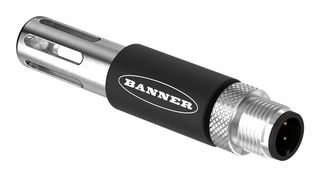

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBANNER ENGINEERING
Manufacturer Part NoS15S-TH-MQ
Newark Part No.62AK6635
Product RangeS15S Series
Technical Datasheet
4 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $208.670 |
Price for:Each
Minimum: 1
Multiple: 1
$208.67
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBANNER ENGINEERING
Manufacturer Part NoS15S-TH-MQ
Newark Part No.62AK6635
Product RangeS15S Series
Technical Datasheet
Sensor Output TypeRS485
Humidity Range0% to 100% Relative Humidity
Supply Voltage Min10VDC
Supply Voltage Max30VDC
Sensing Accuracy7%
Sensor MountingPanel Mount
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product RangeS15S Series
Qualification-
SVHCNo SVHC (15-Jan-2018)
Product Overview
S15S-TH-MQ is a S15S temperature and humidity sensor. Connects directly to a sensor or anywhere in-line for ease of use. Protected against reverse polarity and transient voltages.
- IP67 IP rating, S15 housing style
- Serial (Modbus) input-output
- M12 quick disconnect type, NEMA 6 environmental rating (NEMA)
- Quick disconnect, relative humidity input, temperature input, Modbus RTU
- 74mm dimension length
- 0 to 100% relative humidity (RH)/-40°C to +85°C temperature measuring range
- Supply voltage is 10VDC to 30VDC at 50mA maximum
- Connects via RS485 Modbus® registers
- Ships with aluminum grill filter cap
- Operating conditions: temperature range from -40°C to +70°C
Technical Specifications
Sensor Output Type
RS485
Supply Voltage Min
10VDC
Sensing Accuracy
7%
Operating Temperature Min
-40°C
Product Range
S15S Series
SVHC
No SVHC (15-Jan-2018)
Humidity Range
0% to 100% Relative Humidity
Supply Voltage Max
30VDC
Sensor Mounting
Panel Mount
Operating Temperature Max
85°C
Qualification
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
