1031A 0101000
Multiconductor Cable, Triad Tray, Shielded, 1 Conductor, 16 AWG, 1000 ft, 304.8 m

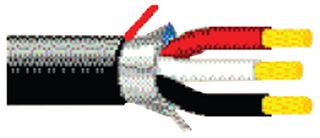

Image is for illustrative purposes only. Please refer to product description.
50,000 In Stock
Delivery in 2-3 Business days(Supplier Direct Ship)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $1,705.230 |
| 5+ | $1,705.230 |
| 10+ | $1,705.230 |
Price for:Spool of 1000
Minimum: 1
Multiple: 1
$1,705.23
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBELDEN
Manufacturer Part No1031A 0101000
Newark Part No.04F6146
Technical Datasheet
Cable ShieldingShielded
No. of Conductors1Conductor
Wire Gauge16AWG
Conductor Area CSA-
Reel Length (Imperial)1000ft
Reel Length (Metric)304.8m
Jacket ColorBlack
No. of Max Strands x Strand Size7 x 24AWG
Conductor MaterialCopper
Jacket MaterialPVC
External Diameter6.8834mm
Voltage Rating300V
Product Range-
SVHCTo Be Advised
Product Overview
1031A 0101000 is a black, 1000ft UL instrumentation cable. Suitable for industrial control, raceways cable trays and ducts, digital control, instruments (4-20ma, 0-10v), low voltage digital control (24V), RTD, control circuits, distributed control system (DCS), programmable logic controller (PLC), Solenoids, Valves, actuators, positioners.
- 300 V (PLTC, CMG, AWM 2464), 150V (ITC) UL voltage rating
- PVC - Polyvinyl Chloride insulation material
- Bi-Laminate (Alum+Poly) outer shield and PVC - polyvinyl chloride outer jacket
- 7x24 stranding, BC - Bare Copper, 16AWG Triad(s) conductor
- UL operating temperature range from -30°C to +105°C
Technical Specifications
Cable Shielding
Shielded
Wire Gauge
16AWG
Reel Length (Imperial)
1000ft
Jacket Color
Black
Conductor Material
Copper
External Diameter
6.8834mm
Product Range
-
No. of Conductors
1Conductor
Conductor Area CSA
-
Reel Length (Metric)
304.8m
No. of Max Strands x Strand Size
7 x 24AWG
Jacket Material
PVC
Voltage Rating
300V
SVHC
To Be Advised
