3612 0061000
Networking Cable, DataTwist, Unshielded, Cat6e, 23 AWG, 1000 ft, 304.8 m
| Quantity | Price |
|---|---|
| 1+ | $802.580 |
| 5+ | $771.540 |
| 10+ | $744.930 |
Product Information
Product Overview

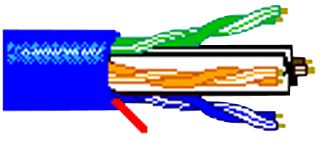

The 3612 0061000 is a 4-pair 1000ft Unshielded Cable with 23AWG solid bare copper conductors and polyolefin insulation. This 3613 plenum enhanced CAT6 non-bonded pair riser-CMR premise horizontal multi-conductor cable comes with a ripcord and blue PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- 200.169N Maximum recommended pulling tension
- 70% Nominal velocity of propagation
- 7.7Ω/100m at 20°C Nominal conductor DC resistance (DCR)
- 0 to 75°C Operating temperature range
Applications
Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
Technical Specifications
Unshielded
23AWG
1000ft
4 Pair
Solid
PVC
5.944mm
No SVHC (10-Jun-2022)
Cat6e
-
304.8m
Blue
300V
Copper
-
Technical Docs (1)
Legislation and Environmental
RoHS
RoHS
Product Compliance Certificate
