6441FE 8771000
Multipair Cable, Security, Shielded, 2 Pair, 20 AWG, 1000 ft, 305 m
| Quantity | Price |
|---|---|
| 1+ | $695.160 |
| 5+ | $668.270 |
| 10+ | $645.230 |
Product Information
Product Overview

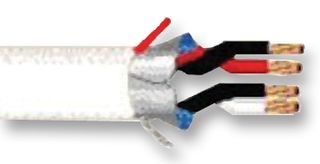

The 6441FE 8771000 is a 2-pair Shielded Cable with 20AWG stranded bare copper conductors and Flamarrest® low smoke PVC insulation. This plenum-CMP multi-conductor cable comes with a Beldfoil® aluminum foil-polyester tape shield, ripcord and natural color Flamarrest® low smoke PVC jacket. Belden multi-conductor cable delivers low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- 264.668N Maximum recommended pulling tension
- 0.52496µH/m Nominal inductance
- 118.116pF/m Nominal capacitance conductor to conductor
- 34.1224Ω/km at 20°C Nominal conductor DC resistance (DCR)
- 0 to 70°C Operating temperature range
Applications
Commercial, Communications & Networking, Automation & Process Control, Metering, Security, Industrial, Computers & Computer Peripherals, Sensing & Instrumentation, Audio
Technical Specifications
Shielded
20AWG
1000ft
Natural
300Vrms
Copper
-
2 Pair
-
305m
7 x 28AWG
PVC
5.791mm
No SVHC (10-Jun-2022)
Technical Docs (1)
Legislation and Environmental
RoHS
RoHS
Product Compliance Certificate
