82723 877U500
Multipair Cable, Audio Control, Shielded, 2 Pair, 22 AWG, 500 ft, 152.4 m

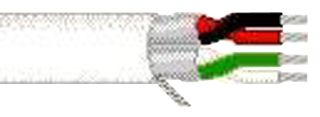

Image is for illustrative purposes only. Please refer to product description.
Unable to Retrieve Availability Information
Product Information
ManufacturerBELDEN
Manufacturer Part No82723 877U500
Newark Part No.04F6174
Technical Datasheet
Cable ShieldingShielded
No. of Pairs2 Pair
Wire Gauge22AWG
Conductor Area CSA-
Reel Length (Imperial)500ft
Reel Length (Metric)152.4m
Jacket ColorNatural
No. of Max Strands x Strand Size7 x 30AWG
Voltage Rating300V
Jacket MaterialLSPVC
Conductor MaterialTinned Copper
External Diameter3.886mm
Product Range-
SVHCNo SVHC (10-Jun-2022)
Product Overview
The 82723 877U500 is a 500ft double-pair Shielded Cable with 22AWG stranded (7 x 30) tinned copper conductors, FEP insulation, Beldfoil® aluminum foil-polyester tape shield (100% coverage) and Flamarrest® low smoke natural polyvinyl chloride (LS PVC) jacket.
- 36Ω Impedance
- 43pF/ft Conductor to shield nominal capacitance
- 75pF/ft Conductor to other conductor and shield nominal capacitance
- 62% Nominal velocity of propagation
- 14.7Ω/1000ft at 20°C Nominal conductor DC resistance
- 15Ω/1000ft at 20°C Nominal inner shield DC resistance
- Plenum rated
- NFPA 262 Flame tested
Applications
Industrial
Technical Specifications
Cable Shielding
Shielded
Wire Gauge
22AWG
Reel Length (Imperial)
500ft
Jacket Color
Natural
Voltage Rating
300V
Conductor Material
Tinned Copper
Product Range
-
No. of Pairs
2 Pair
Conductor Area CSA
-
Reel Length (Metric)
152.4m
No. of Max Strands x Strand Size
7 x 30AWG
Jacket Material
LSPVC
External Diameter
3.886mm
SVHC
No SVHC (10-Jun-2022)
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (10-Jun-2022)
