83007 010100

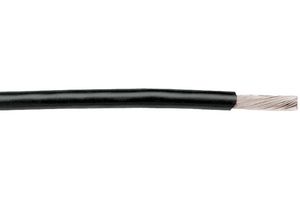

Wire, Hook Up, Hi Temp, PTFE, Black, 20 AWG, 100 ft
24 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | $306.500 |
| 5+ | $294.640 |
| 10+ | $284.480 |
Product Information
Product Overview
The 83007 010100 is a 100ft high temperature Hook-up/Lead Wire with 20AWG (19 x 32) stranded silver-coated copper conductor and extruded PTFE insulation. PTFE is a fluorinated thermoplastic with outstanding thermal, physical and electrical properties. PTFE is generally restricted to applications requiring its special characteristics because its basic resin and processing costs are relatively high.
- 9Ω/1000ft at 20°C Nominal conductor DC resistance
- -70 to +200°C Operating temperature range
- VW-1 Flame tested
- UL AWM Style 1213, 105°C
- Military specification: NEMA HP3, MIL-W-16878/4 (except for stranding), 600V, 200°C
Applications
Computers & Computer Peripherals, Signal Processing, Consumer Electronics, Lighting, Motor Drive & Control, HVAC, Industrial, Automotive, Defence, Military & Aerospace
Technical Specifications
PTFE
20AWG
100ft
200°C
600V
1.422mm
-
Black
-
30.5m
19 x 32AWG
Silver Plated Copper
MIL-W-16878/4, UL 1213
No SVHC (10-Jun-2022)
Technical Docs (1)
Legislation and Environmental
RoHS
RoHS
Product Compliance Certificate
