DCX3000
KVM Matrix Switch, Automatic, 1 x RJ45, 2 x Hirose Connector Input, 30 x RJ45, 1 x DB9 Male Output

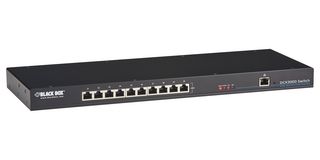

Image is for illustrative purposes only. Please refer to product description.
No Longer Available
Product Overview
DCX3000 is a switching system. It contains three components: the central switching unit (30-port digital KVM matrix switch, DCX3000), the receiver unit (DCX3000-DVR), and server access modules (DVI: DCX3000-DVT, DisplayPort: DCX3000-DPT, VGA: DCX-VGA). The interface-powered server access modules (SAMs) extend DVI, DisplayPort or VGA signals and USB over standard CATx cabling from individual servers to the central switching unit and the receivers connect end-user stations to the central switching unit. A DCX SAM module links to each computer.
- Designed for small- to medium-sized applications with uncompressed video signals
- Fast, reliable switching of digital KVM, HD video, audio and USB
- All computers with DVI-D/DisplayPort/VGA digital video and USB interfaces
- (30) ports supporting a maximum of 23 computer connections or up to 29 user connections
- 1920 x 1200 at 60Hz resolution
- 0 to 40°C temperature range
- External, in-line power supply
- Dimension is 1.25" H x 17" W x 6.25" D
- FCC class A approved
Technical Specifications
Computer Switch Type
KVM
No. of Ways
30
Output Connection
30 x RJ45, 1 x DB9 Male
SVHC
To Be Advised
Computer Switch Function
Automatic
Input Connection
1 x RJ45, 2 x Hirose Connector
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
