KM100-1
Heat Sink, PCB, Board Level, 3.3 °C/W, TO-218, TO-220, TO-247, 30 mm, 45.01 mm, 100 mm

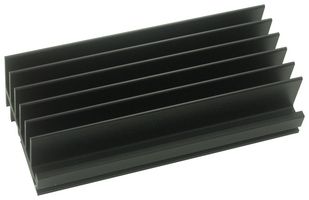

Image is for illustrative purposes only. Please refer to product description.
31 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $34.990 |
| 10+ | $33.350 |
| 25+ | $30.780 |
| 50+ | $28.070 |
| 100+ | $24.330 |
| 250+ | $22.650 |
| 500+ | $20.170 |
Price for:Each
Minimum: 1
Multiple: 1
$34.99
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBOYD
Manufacturer Part NoKM100-1
Newark Part No.10WX1023
Technical Datasheet
Thermal Resistance3.3°C/W
Packages CooledTO-218, TO-220, TO-247
External Width - Metric30mm
External Height - Metric45.01mm
External Length - Metric100mm
External Diameter - Metric-
Heat Sink MaterialAluminum
External Width - Imperial1.18"
External Height - Imperial1.77"
External Length - Imperial3.94"
External Diameter - Imperial-
Product Range-
SVHCNo SVHC (15-Jan-2019)
Product Overview
This heatsink features a clip retaining slot and is for use with retaining clips for quick and easy fitting.
Technical Specifications
Thermal Resistance
3.3°C/W
External Width - Metric
30mm
External Length - Metric
100mm
Heat Sink Material
Aluminum
External Height - Imperial
1.77"
External Diameter - Imperial
-
SVHC
No SVHC (15-Jan-2019)
Packages Cooled
TO-218, TO-220, TO-247
External Height - Metric
45.01mm
External Diameter - Metric
-
External Width - Imperial
1.18"
External Length - Imperial
3.94"
Product Range
-
Technical Docs (2)
Alternatives for KM100-1
1 Product Found
Associated Products
4 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2019)
