HSMG-C190
LED, Green, SMD, 0603, 20 mA, 2.2 V, 572 nm

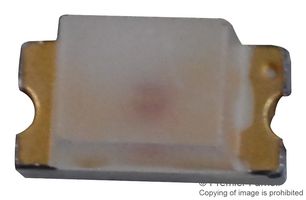

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBROADCOM
Manufacturer Part NoHSMG-C190
Newark Part No.68Y1165
Product RangeSMD Green LED
Technical Datasheet
121,249 In Stock
Need more?
4235 Delivery in 1-3 Business Days(US stock)
117014 Delivery in 2-4 Business Days(UK stock)
Order before 9pm
| Quantity | Price |
|---|---|
| 1+ | $0.397 |
| 10+ | $0.277 |
| 25+ | $0.251 |
| 50+ | $0.223 |
| 100+ | $0.196 |
| 250+ | $0.178 |
| 500+ | $0.160 |
| 1000+ | $0.148 |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$0.40
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBROADCOM
Manufacturer Part NoHSMG-C190
Newark Part No.68Y1165
Product RangeSMD Green LED
Technical Datasheet
LED ColorGreen
LED MountingSMD
Bulb Size0.8mm x 1.6mm
LED Case Size0603
Forward Current If20mA
Forward Voltage2.2V
Wavelength Typ572nm
Luminous Intensity15mcd
Viewing Angle170°
Lens ShapeRectangular
Product RangeSMD Green LED
Automotive Qualification Standard-
MSLMSL 2A - 4 weeks
SVHCNo SVHC (21-Jan-2025)
Product Overview
The HSMG-C190 is a surface mount Chip LED designed in an industry standard package for ease of handling and use. The HSMG-C190 series has the industry standard 1.6 x 0.8mm footprint with varying profile to suit designer needs. This family with its thin profile and wide viewing angle makes this LED exceptional for backlighting applications. The small size and wide viewing angle makes this LED prime choice for backlighting applications and front panel illumination especially where space is a premium.
- Small size
- Industry standard footprint
- Compatible with IR solder
- Diffused optics
- -40 to 85°C Operating temperature range
Applications
LED Lighting, Industrial
Technical Specifications
LED Color
Green
Bulb Size
0.8mm x 1.6mm
Forward Current If
20mA
Wavelength Typ
572nm
Viewing Angle
170°
Product Range
SMD Green LED
MSL
MSL 2A - 4 weeks
LED Mounting
SMD
LED Case Size
0603
Forward Voltage
2.2V
Luminous Intensity
15mcd
Lens Shape
Rectangular
Automotive Qualification Standard
-
SVHC
No SVHC (21-Jan-2025)
Technical Docs (3)
Alternatives for HSMG-C190
1 Product Found
Associated Products
8 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
