NBB-10267

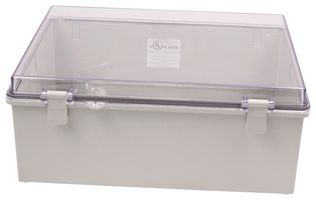

Plastic Enclosure, NBB Series, UL, NEMA, IEC, ABS, 398.3 mm, 298 mm, 160 mm, IP66
Image is for illustrative purposes only. Please refer to product description.
10 In Stock
Delivery in 2-3 Business days(Supplier Direct Ship)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $129.870 |
Price for:Each
Minimum: 1
Multiple: 1
$129.87
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBUD INDUSTRIES
Manufacturer Part NoNBB-10267
Newark Part No.83F6463
Technical Datasheet
Enclosure Type-
Enclosure MaterialABS
External Height - Metric398.3mm
External Width - Metric298mm
External Depth - Metric160mm
IP RatingIP66
Body ColorGray
NEMA RatingNEMA 1, 4, 4x
External Height - Imperial15.7"
External Width - Imperial11.7"
External Depth - Imperial6.3"
Product Range-
SVHCNo SVHC (07-Nov-2024)
Product Overview
NBB-10267 is a ABS poly blend NEMA box.
- External dimension is 15.68" x 11.73" x 6.3", internal dimension is 14.88" x 10.89" x 6.03" (LxWxD)
- Designed to IP66 of IEC 529 and NEMA 1, 2, 3, 3R, 4, 4X, 12, and 13 specifications
- UL listed to UL508-4X requirements
- Molded out of light gray material with UL94-5VB flammability rating
- Non-metallic latches and hinges
- Cover includes gray polyurethane gasket
- Unit comes with wall mounting brackets and screws
- Clear doors for all models are made of polycarbonate with a UL94-V0 flammability rating
Technical Specifications
Enclosure Type
-
External Height - Metric
398.3mm
External Depth - Metric
160mm
Body Color
Gray
External Height - Imperial
15.7"
External Depth - Imperial
6.3"
SVHC
No SVHC (07-Nov-2024)
Enclosure Material
ABS
External Width - Metric
298mm
IP Rating
IP66
NEMA Rating
NEMA 1, 4, 4x
External Width - Imperial
11.7"
Product Range
-
Alternatives for NBB-10267
1 Product Found
Associated Products
6 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (07-Nov-2024)
