CT4024
Oscilloscope Probe, High-Voltage Divider, 40 MHz, 8 kV, 1000:1, Oscilloscopes

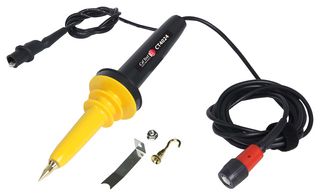

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCAL TEST ELECTRONICS
Manufacturer Part NoCT4024
Newark Part No.50AC8928
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 7 week(s)
| Quantity | Price |
|---|---|
| 1+ | $521.250 |
Price for:Each
Minimum: 1
Multiple: 1
$521.25
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCAL TEST ELECTRONICS
Manufacturer Part NoCT4024
Newark Part No.50AC8928
Technical Datasheet
Oscilloscope Probe FunctionHigh-Voltage Divider
Bandwidth40MHz
Input Voltage Max8kV
Test Probe Attenuation1000:1
For Use WithOscilloscopes
Product Range-
SVHCNo SVHC (17-Jan-2023)
Product Overview
CT4024 is a compact probe featuring a 1000:1 divider ratio with voltage up to 8KV (DC+peak AC), 6KV (ACrms) and bandwidth up to 40MHz. Compatible with oscilloscopes from all major manufacturers, the probe is a necessity for user safety during high voltage measurements.
- Meets IEC 61010-031 safety standard
- Small size with big performance
- Up to 8KV DC + peak AC
- 40 MHz bandwidth
- Can be used with your DMM by employing BNC converter CT3197B
Contents
High voltage probe, Trimmer tool, Tip, Hook tip, Flat bar tip, User manual.
Technical Specifications
Oscilloscope Probe Function
High-Voltage Divider
Input Voltage Max
8kV
For Use With
Oscilloscopes
SVHC
No SVHC (17-Jan-2023)
Bandwidth
40MHz
Test Probe Attenuation
1000:1
