PTFA0100

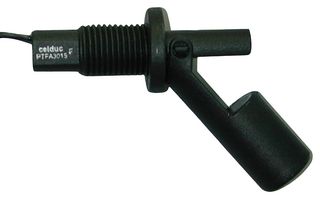

Float Switch, PTFA Series, Horizontal, SPST-NO, Nylon 6.6, 10 VA
Image is for illustrative purposes only. Please refer to product description.
370 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $28.890 |
| 10+ | $27.600 |
| 25+ | $25.590 |
| 50+ | $23.470 |
| 100+ | $20.550 |
| 250+ | $19.230 |
| 500+ | $17.300 |
Price for:Each
Minimum: 1
Multiple: 1
$28.89
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCELDUC
Manufacturer Part NoPTFA0100
Newark Part No.48W3468
Technical Datasheet
Level Switch TypeLevel Sensor
Media TypeLiquid
Sensor Body MaterialNylon 6.6 (Polyamide 6.6)
Output Current500mA
Process Connection Type-
Operating Pressure Max-
Housing MaterialNylon 6 (Polyamide 6)
Switch OutputSPST-NO
Electrical ConnectionCable
Supply Voltage Min-
Supply Voltage Max200V
Operating Temperature Min0°C
Operating Temperature Max70°C
Product Range-
Product Overview
The PTFA0100 is a Horizontal Level Sensor with REED switch. Closed: float end sensor lined up, Open: float end sensor out of line. Liquid level detection for drink vending or coffee machines, washing machines.
- 30% Glass filled nylon 6 housing
- 30% Glass filled nylon 6 float
- -0 to 70°C Operating temperature
Technical Specifications
Level Switch Type
Level Sensor
Sensor Body Material
Nylon 6.6 (Polyamide 6.6)
Process Connection Type
-
Housing Material
Nylon 6 (Polyamide 6)
Electrical Connection
Cable
Supply Voltage Max
200V
Operating Temperature Max
70°C
SVHC
No SVHC (27-Jun-2024)
Media Type
Liquid
Output Current
500mA
Operating Pressure Max
-
Switch Output
SPST-NO
Supply Voltage Min
-
Operating Temperature Min
0°C
Product Range
-
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2024)
