Product Information
Product Overview

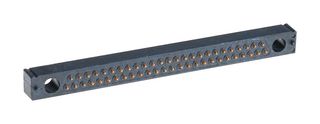

CIN::APSE Stacking connector with 51 positions dispersed in 2 rows. The connector height is 0.125" (3.18 mm) and attaches to a PCB or components using 2x #2 Thru Holes (Ø 0.090”) for fasteners. Positioning features are located on the connector. The compression contacts bond to gold plated pads on the corresponding PCB or component. Innovative Compression-Mount Technology CIN::APSE® is a unique, Z-Axis compression interconnect which provides superior mechanical and electrical performance. The contact construction consists of randomly wound gold plated molybdenum wire, formed into a cylindrical shape. The basic CIN::APSE® contact configuration consists of a contact installed into a customised plastic insulator with the patented Cinch contact retention design. Once in place, the contact extends to both sides of the insulator, creating an unmatched electrical connection.
- Low Compression Force, Low Contact Resistance
- High Reliability. High Density. Low Mating Force. Low Resistance and Inductance.
Applications
Aerospace, Computers & Computer Peripherals, Military, Radar Systems, Satellite Communication (SATCOM), Telecommunications, Transportation
Technical Specifications
cinAPSE Series
1.27mm
51Contacts
Gold Plated Contacts
Lead
Compression Connector
2 Row
Surface Mount
Molybdenum Alloy
Technical Docs (3)
Associated Products
3 Products Found
Legislation and Environmental
RoHS
RoHS
Product Compliance Certificate
