DB25P
D Sub Connector, DB25, 25 Contacts, Plug, Solder Cup, DB, Basic D Series, Metal Body

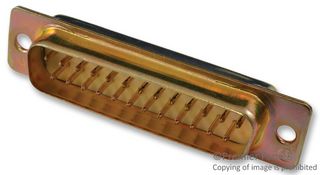

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCINCH CONNECTIVITY SOLUTIONS
Manufacturer Part NoDB25P
Newark Part No.43F205
Product RangeBasic D Series
Technical Datasheet
297 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $49.790 |
| 25+ | $41.730 |
| 50+ | $37.540 |
| 100+ | $33.190 |
| 250+ | $30.130 |
| 500+ | $27.560 |
Price for:Each
Minimum: 1
Multiple: 1
$49.79
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCINCH CONNECTIVITY SOLUTIONS
Manufacturer Part NoDB25P
Newark Part No.43F205
Product RangeBasic D Series
Technical Datasheet
D Sub Connector TypeStandard
Product RangeBasic D Series
No. of Contacts25Contacts
D Sub Shell SizeDB
Contact Termination TypeSolder Cup
Connector MountingCable Mount
Contact Material-
Contact Plating-
Connector Body MaterialMetal Body
SVHCLead
Product Overview
Standard density D-subminiature 25 contact plug used for a wide range of applications in aerospace & defence, industrial and transportation end markets.
- DB shell size and supports solder termination
- Copper alloy contact with gold flash finish
- Steel with zinc plating and yellow chromate finish or tin plating
- Glass-filled polyester insulator
- Standard fixing holes
Technical Specifications
D Sub Connector Type
Standard
Product Range
Basic D Series
D Sub Shell Size
DB
Connector Mounting
Cable Mount
Contact Plating
-
SVHC
Lead
Gender
Plug
No. of Contacts
25Contacts
Contact Termination Type
Solder Cup
Contact Material
-
Connector Body Material
Metal Body
Technical Docs (2)
Alternatives for DB25P
4 Products Found
Associated Products
5 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:Lead
