DCMA-37S
D Sub Connector, DB37, Standard, Receptacle, DCM Series, 37 Contacts, DC, Crimp

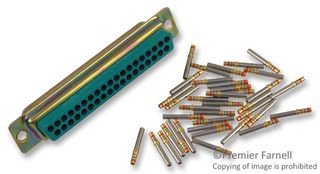

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCINCH CONNECTIVITY SOLUTIONS
Manufacturer Part NoDCMA-37S
Newark Part No.45F832
Product RangeDCM Series
Technical Datasheet
87 In Stock
Delivery in 2-3 Business days(Supplier Direct Ship)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $169.620 |
| 10+ | $155.710 |
| 25+ | $144.590 |
| 50+ | $139.030 |
Price for:Each
Minimum: 1
Multiple: 1
$169.62
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCINCH CONNECTIVITY SOLUTIONS
Manufacturer Part NoDCMA-37S
Newark Part No.45F832
Product RangeDCM Series
Technical Datasheet
D Sub Connector TypeStandard
Product RangeDCM Series
No. of Contacts37Contacts
D Sub Shell SizeDC
Contact Termination TypeCrimp
Connector MountingCable Mount
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Connector Body MaterialMetal Body
SVHCLead
Product Overview
The DCMA-37S is a 37-position standard D-sub Receptacle with gold-plated phosphor bronze contacts, zinc-plated steel shell and green glass fiber filled diallyl phthalate (UL94V-0) insulator. Crimp contact termination.
- 5A Current rating
- 2.7mΩ Contact resistance
- 5000MΩ Insulation resistance
- 1250V Dielectric voltage
- 500-cycle Durability (mating)
Applications
Computers & Computer Peripherals
Technical Specifications
D Sub Connector Type
Standard
Product Range
DCM Series
D Sub Shell Size
DC
Connector Mounting
Cable Mount
Contact Plating
Gold Plated Contacts
SVHC
Lead
Gender
Receptacle
No. of Contacts
37Contacts
Contact Termination Type
Crimp
Contact Material
Phosphor Bronze
Connector Body Material
Metal Body
Technical Docs (1)
Alternatives for DCMA-37S
6 Products Found
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:Lead
