DEUH-9S

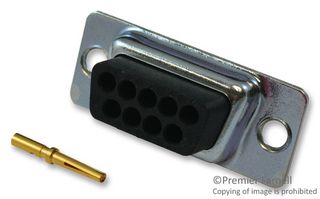

D Sub Connector, DB9, Standard, Receptacle, DEUH Series, 9 Contacts, DE, Crimp
Image is for illustrative purposes only. Please refer to product description.
ManufacturerCINCH CONNECTIVITY SOLUTIONS
Manufacturer Part NoDEUH-9S
Newark Part No.11M3006
Product RangeDEUH Series
Technical Datasheet
125 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $86.540 |
| 25+ | $72.540 |
| 50+ | $65.250 |
| 100+ | $57.700 |
| 250+ | $52.380 |
| 500+ | $47.900 |
Price for:Each
Minimum: 1
Multiple: 1
$86.54
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCINCH CONNECTIVITY SOLUTIONS
Manufacturer Part NoDEUH-9S
Newark Part No.11M3006
Product RangeDEUH Series
Technical Datasheet
D Sub Connector TypeStandard
Product RangeDEUH Series
No. of Contacts9Contacts
D Sub Shell SizeDE
Contact Termination TypeCrimp
Connector MountingCable Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Body MaterialMetal Body
SVHCLead
Product Overview
The DEUH-9S is a 9-position standard D-sub Receptacle with gold-plated copper alloy contacts, zinc with clear chromate plated steel shell and glass filled nylon (UL94V-0) insulator. Crimp contact termination.
- 5A Current rating
- 2.7mΩ Contact resistance
- 5000MΩ Insulation resistance
- 1000V Dielectric voltage
- 500-cycle Durability (mating)
Applications
Computers & Computer Peripherals
Technical Specifications
D Sub Connector Type
Standard
Product Range
DEUH Series
D Sub Shell Size
DE
Connector Mounting
Cable Mount
Contact Plating
Gold Plated Contacts
SVHC
Lead
Gender
Receptacle
No. of Contacts
9Contacts
Contact Termination Type
Crimp
Contact Material
Copper Alloy
Connector Body Material
Metal Body
