M24308/2-4F
D Sub Connector, DB37, Standard, Receptacle, M24308 Series, 37 Contacts, DC, Crimp

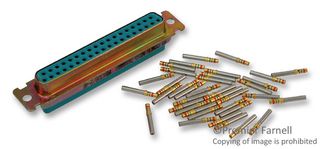

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCINCH CONNECTIVITY SOLUTIONS
Manufacturer Part NoM24308/2-4F
Newark Part No.45F1002
Product RangeM24308 Series
Technical Datasheet
13 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $191.030 |
| 10+ | $175.370 |
| 25+ | $162.850 |
| 50+ | $156.590 |
Price for:Each
Minimum: 1
Multiple: 1
$191.03
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCINCH CONNECTIVITY SOLUTIONS
Manufacturer Part NoM24308/2-4F
Newark Part No.45F1002
Product RangeM24308 Series
Technical Datasheet
D Sub Connector TypeStandard
Product RangeM24308 Series
No. of Contacts37Contacts
D Sub Shell SizeDC
Contact Termination TypeCrimp
Connector MountingCable Mount
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Body MaterialMetal Body
SVHCLead
Product Overview
The M24308/2-4F is a 37-position D-sub Standard Connector with 50µ-inch gold over copper or nickel phosphor bronze (machined) contacts. This MIL-C-24308 Class G socket features green glass-filled diallyl phthalate per MIL-M-14, type SDG-F insulator and steel with cadmium plating and a yellow chromate finish shell. Supports crimp termination.
- 5A Rated current
- 2.7mΩ Maximum contact resistance
- 5000MΩ Maximum insulation resistance
- 1250VRMS at sea level Withstanding voltage
- -65 to + 125°C Operating temperature range
Applications
Defence, Military & Aerospace, Computers & Computer Peripherals
Technical Specifications
D Sub Connector Type
Standard
Product Range
M24308 Series
D Sub Shell Size
DC
Connector Mounting
Cable Mount
Contact Plating
Gold Plated Contacts
SVHC
Lead
Gender
Receptacle
No. of Contacts
37Contacts
Contact Termination Type
Crimp
Contact Material
Copper Alloy
Connector Body Material
Metal Body
Technical Docs (2)
Alternatives for M24308/2-4F
8 Products Found
Associated Products
1 Product Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:Lead
