6609064-4
Power Line Filter, General Purpose, 250 VAC, 10 A, Single Phase, 1 Stage, Through Hole

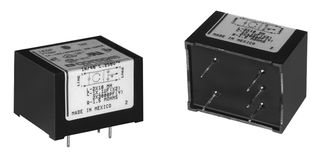

Image is for illustrative purposes only. Please refer to product description.
ManufacturerCORCOM - TE CONNECTIVITY
Manufacturer Part No6609064-4
Newark Part No.52K3892
Product RangeEOP Series
Also Known As10EOP=F7690A S0
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 26 week(s)
| Quantity | Price |
|---|---|
| 100+ | $26.920 |
| 250+ | $25.350 |
| 500+ | $24.900 |
Price for:Each
Minimum: 150
Multiple: 25
$4,038.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerCORCOM - TE CONNECTIVITY
Manufacturer Part No6609064-4
Newark Part No.52K3892
Product RangeEOP Series
Also Known As10EOP=F7690A S0
Technical Datasheet
Filter ApplicationsGeneral Purpose
Voltage Rating250VAC
Filter Type1 Phase
Current Rating10A
No. of PhasesSingle Phase
No. of Stages1 Stage
Filter TerminalsThrough Hole
Inductance Min350µH
Filter MountingThrough Hole
Filter Input Terminals-
Leakage Current Max420µA
Filter Output Terminals-
Product RangeEOP Series
Technical Specifications
Filter Applications
General Purpose
Filter Type
1 Phase
No. of Phases
Single Phase
Filter Terminals
Through Hole
Filter Mounting
Through Hole
Leakage Current Max
420µA
Product Range
EOP Series
Voltage Rating
250VAC
Current Rating
10A
No. of Stages
1 Stage
Inductance Min
350µH
Filter Input Terminals
-
Filter Output Terminals
-
SVHC
Triphenyl Phosphate
Technical Docs (3)
Alternatives for 6609064-4
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Triphenyl Phosphate
Download Product Compliance Certificate
Product Compliance Certificate
