DT04-2P-CE09
Automotive Connector Housing, Thin Wall, Black, DT Series, Receptacle, 2 Positions

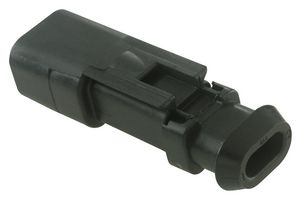

Image is for illustrative purposes only. Please refer to product description.
ManufacturerDEUTSCH - TE CONNECTIVITY
Manufacturer Part NoDT04-2P-CE09
Newark Part No.77R3066
Product RangeDT
Technical Datasheet
7,790 In Stock
Need more?
Delivery in 2-4 Business Days(UK stock)
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.030 |
| 10+ | $1.980 |
| 25+ | $1.910 |
| 50+ | $1.820 |
| 100+ | $1.730 |
| 500+ | $1.380 |
| 1000+ | $1.300 |
| 2500+ | $1.240 |
Price for:Each
Minimum: 1
Multiple: 1
$2.03
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerDEUTSCH - TE CONNECTIVITY
Manufacturer Part NoDT04-2P-CE09
Newark Part No.77R3066
Product RangeDT
Technical Datasheet
Product RangeDT
No. of Positions2Positions
For Use WithDT Series Pin Contacts
Connector Body MaterialThermoplastic Body
IP RatingIP68
IP RatingIP68
Voltage Rating250V
Current Rating13A
SVHCNo SVHC (21-Jan-2025)
Product Overview
The DT042P-CE09 is a 2-way black sealed Receptacle Housing, made of thermoplastic, suitable for male terminals. This DT series connector housing is designed for wire to wire applications.
- 5.46mm Pitch
- W2P Green wedge
- IP67 Protection rating
- -55 to 125°C Operating temperature range
Applications
Automotive
Technical Specifications
Product Range
DT
No. of Positions
2Positions
Connector Body Material
Thermoplastic Body
IP Rating
IP68
Current Rating
13A
Gender
Receptacle
For Use With
DT Series Pin Contacts
IP Rating
IP68
Voltage Rating
250V
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Associated Products
7 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Product traceability
