521-9324F
LED, Low Current, Red, Through Hole, T-1 (3mm), 2 mA, 1.7 V, 635 nm

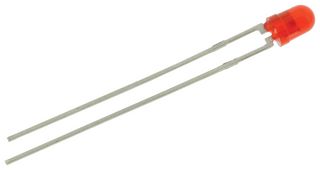

Image is for illustrative purposes only. Please refer to product description.
ManufacturerDIALIGHT
Manufacturer Part No521-9324F
Newark Part No.30K0587
Product Range521 Series
Technical Datasheet
17 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
| Quantity | Price |
|---|---|
| 1+ | $2.050 |
| 10+ | $1.390 |
| 25+ | $1.310 |
| 50+ | $1.220 |
| 100+ | $1.140 |
| 250+ | $1.140 |
| 500+ | $1.140 |
| 1000+ | $1.140 |
Price for:Each
Minimum: 1
Multiple: 1
$2.05
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerDIALIGHT
Manufacturer Part No521-9324F
Newark Part No.30K0587
Product Range521 Series
Technical Datasheet
LED ColorRed
LED MountingThrough Hole
Bulb SizeT-1 (3mm)
LED Case SizeT-1 (3mm)
Forward Current If2mA
Forward Voltage1.7V
Wavelength Typ635nm
Luminous Intensity1.6mcd
Viewing Angle60°
Lens ShapeRound
Product Range521 Series
Automotive Qualification Standard-
MSL-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 521-9324F is a 3mm discrete red LED Lamp with diffused lens and low current.
- -55 to 100°C Operating temperature range
Applications
LED Lighting, Industrial
Technical Specifications
LED Color
Red
Bulb Size
T-1 (3mm)
Forward Current If
2mA
Wavelength Typ
635nm
Viewing Angle
60°
Product Range
521 Series
MSL
-
LED Mounting
Through Hole
LED Case Size
T-1 (3mm)
Forward Voltage
1.7V
Luminous Intensity
1.6mcd
Lens Shape
Round
Automotive Qualification Standard
-
SVHC
No SVHC (21-Jan-2025)
