675-1111-110F

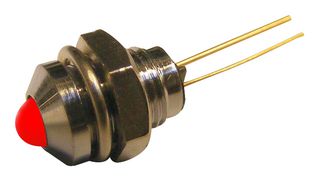

LED Panel Mount Indicator, 100K Hours, Red, 2 VDC, 5.2 mm, 20 mA, 9.11 cd, Not Rated
Image is for illustrative purposes only. Please refer to product description.
ManufacturerDIALIGHT
Manufacturer Part No675-1111-110F
Newark Part No.96Y6228
Product Range675 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 18 week(s)
| Quantity | Price |
|---|---|
| 250+ | $5.310 |
| 500+ | $4.830 |
| 1000+ | $4.370 |
Price for:Each
Minimum: 250
Multiple: 25
$1,327.50
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerDIALIGHT
Manufacturer Part No675-1111-110F
Newark Part No.96Y6228
Product Range675 Series
Technical Datasheet
LED ColorRed
Operating Voltage2VDC
Mounting Hole Dia5.2mm
Forward Current If20mA
Luminous Intensity9.11cd
IP / NEMA RatingNot Rated
Product Range675 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 675-1111-110F from Dialight is 675 series panel mount indicator. This low power indicator uses up to 90% less energy than an incandescent indicator. There is no heat generated and it has long life lasting up to 100Khours.
- Red colour illumination
- 2VDC operating voltage
- 20mA current
- Typical intensity is 9110mcd
- Protruding LED position
- Maximum panel thickness is 0.138” (3.5mm) and mounting hole size is 0.2047” (5.2mm)
- Chrome plated brass housing, front panel mounting
- Operating temperature range from -30°C to +85°C
- Through leads electrical connection
Applications
Signalling
Technical Specifications
LED Color
Red
Mounting Hole Dia
5.2mm
Luminous Intensity
9.11cd
Product Range
675 Series
Operating Voltage
2VDC
Forward Current If
20mA
IP / NEMA Rating
Not Rated
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
