686-1232-142F
LED Panel Mount Indicator, 100K Hours, Green, 24 VDC, 16.5 mm, 20 mA, 8.15 cd, Not Rated

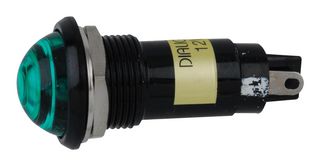

Image is for illustrative purposes only. Please refer to product description.
ManufacturerDIALIGHT
Manufacturer Part No686-1232-142F
Newark Part No.96Y6572
Product Range686 Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Product Information
ManufacturerDIALIGHT
Manufacturer Part No686-1232-142F
Newark Part No.96Y6572
Product Range686 Series
Technical Datasheet
LED ColorGreen
Operating Voltage24VDC
Mounting Hole Dia16.5mm
Forward Current If20mA
Luminous Intensity8.15cd
IP / NEMA RatingNot Rated
Product Range686 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 686-1232-142F from Dialight is 686 series panel mount indicator. This low power indicator uses up to 90% less energy than an incandescent indicator. There is no heat generated and it has long life lasting up to 100Khours.
- Green colour illumination
- 24VDC operating voltage
- 20mA current
- Typical intensity is 8150mcd
- Maximum panel thickness is 0.236” (6.3mm) and mounting hole size is 0.650” (16.5mm)
- Polycarbonate housing, front panel mounting
- Operating temperature range from -20°C to +75°C
- Solder terminal connection
Applications
Signalling
Technical Specifications
LED Color
Green
Mounting Hole Dia
16.5mm
Luminous Intensity
8.15cd
Product Range
686 Series
Operating Voltage
24VDC
Forward Current If
20mA
IP / NEMA Rating
Not Rated
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
