                                                                                                  410-249

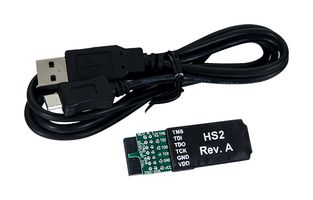

                                                                                                  Programming Cable, Compatible with IEEE 1149.7-2009 Class T0 - Class T4

                                                                                                  DIGILENT 410-249
                                                                                                  DIGILENT 410-249
                                                                                                  DIGILENT 410-249
                                                                                                  DIGILENT 410-249
                                                                                                  DIGILENT 410-249
                                                                                                  Image is for illustrative purposes only. Please refer to product description.
                                                                                                  ManufacturerDIGILENT
                                                                                                  Manufacturer Part No410-249
                                                                                                  Newark Part No.40AH1603
                                                                                                  Technical Datasheet

                                                                                                  Data Sheet

                                                                                                  See all Technical Docs
                                                                                                  103 In Stock

                                                                                                  Need more?

                                                                                                  Same day shipping
                                                                                                  Order before 9pm EST standard shipping
                                                                                                  QuantityPrice
                                                                                                  1+$88.960
                                                                                                  Price for:Each
                                                                                                  Minimum: 1
                                                                                                  Multiple: 1
                                                                                                  $88.96
                                                                                                  Enter Your Part No/Line Note
                                                                                                  Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
                                                                                                  This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.

                                                                                                  Product Information

                                                                                                  ManufacturerDIGILENT
                                                                                                  Manufacturer Part No410-249
                                                                                                  Newark Part No.40AH1603
                                                                                                  Technical Datasheet

                                                                                                  Data Sheet

                                                                                                  Accessory TypeProgramming Cable
                                                                                                  For Use WithXilinx FPGAs
                                                                                                  FeaturesCompatible with IEEE 1149.7-2009 Class T0 - Class T4
                                                                                                  Product Range-
                                                                                                  SVHCNo SVHC (21-Jan-2025)

                                                                                                  Product Overview

                                                                                                  The joint test action group (JTAG) HS2 programming cable is a high speed programming solution for Xilinx® field-programmable gate arrays (FPGAs). The cable is fully compatible with all Xilinx tools and can be seamlessly driven from iMPACT™, ChipScope™, and EDK. The HS2 attaches to target boards using Digilent's 6 pin, 100 mil spaced programming header or Xilinx's 2x7, 2mm connector and the included adaptor. The PC powers the JTAG-HS2 through the USB port and will recognize it as a Digilent programming cable when connected to a PC, even if the cable is not attached to the target board. The HS2 has a separate VDD pin to supply the JTAG signal buffers. The high speed 24mA three state buffers allow target boards to drive the HS2 with signal voltages from 1.8V to 5V and bus speeds of up to 30MBit/sec.

                                                                                                  • Standard type-A to Micro-USB cable that attaches to end of module opposite system board connector
                                                                                                  • Analog Devices ADP123AUJZ linear regulator
                                                                                                  • Small, complete, all-in-one JTAG programming solution for Xilinx FPGAs
                                                                                                  • Compatible with all Xilinx tools
                                                                                                  • Compatible with IEEE 1149.7-2009 class T0 - class T4 (includes 2-wire JTAG)
                                                                                                  • Separate Vref drives JTAG/SPI signal voltages, Vref can be any voltage between 1.8V and 5V
                                                                                                  • High speed USB2 port that can drive JTAG/SPI bus at up to 30Mbit/sec
                                                                                                  • JTAG/SPI frequency settable by user, uses micro-AB USB2 connector
                                                                                                  • SPI programming solution (modes 0 and 2 up to 30Mbit/sec, modes 1 and 3 up to 2Mbit/sec)
                                                                                                  • Fully supported by Adept software and Adept SDK allowing custom JTAG/SPI applications to be created
