6069-471-000

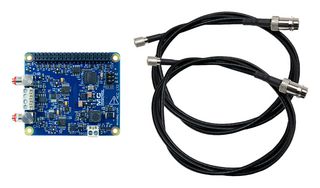

6069-471-000 is a MCC 172 IEPE measurement DAQ HAT for Raspberry Pi® with two coaxial cables. The MCC 172 IEPE measurement DAQ HAT features two channels for making sound and vibration measurements from IEPE sensors like accelerometers and microphones. It features a 24bit A/D per channel and a maximum sample rate of 51.2KS/s/ch. Up to eight MCC HATs can be stacked onto one Raspberry Pi.

• Two IEPE inputs
• Two 24bit, 51.2KS/s A/D converters (one per channel)
• AC coupled at ±5V
• 10-32 and screw terminal connections for OEM support
• Synchronous ADC conversions between multiple boards
• Onboard sample buffers allow high-speed acquisition
• External digital trigger input

Contents

MCC 172 DAQ HAT standalone, bundled with two coaxial cables (3ft, with 10-32 plug to BNC jack), 2x20 header connector (plugs into the 40 pin GPIO connector on the Pi board), Jumpers (3), Standoffs (4), Screws (4), Nuts (4), Printed insert: getting started with MCC DAQ HATs, MCC packaging assembly/foam.
