AVUL-5DB1
Air Velocity Transmitter, 5% Accuracy, Analog/BACnet MS/TP, Duct Mount, AVUL Series

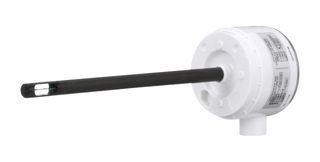

Image is for illustrative purposes only. Please refer to product description.
ManufacturerDWYER
Manufacturer Part NoAVUL-5DB1
Newark Part No.82AK4259
Product RangeAVUL Series
Technical Datasheet
Unable to Retrieve Availability Information
Product Information
ManufacturerDWYER
Manufacturer Part NoAVUL-5DB1
Newark Part No.82AK4259
Product RangeAVUL Series
Technical Datasheet
Flow Rate Min-
Flow Rate Max-
Supply Voltage Min19.2V
Supply Voltage Max28.8V
Product RangeAVUL Series
SVHCTo Be Advised
Product Overview
AVUL-5DB1 is a series AVUL air velocity transmitter quickly and accurately measures air velocity or volumetric flow in imperial or metric units. Simultaneous current and voltage outputs on all models provide universal inputs to monitoring equipment. Typical applications include VAV systems, building ducts and HVAC systems.
- 5% of reading accuracy
- Duct mount
- Analog + BACnet MS/TP output
- Temperature limits range from 32 to 122°F (0 to 50°C)
- Power requirements from 24VDC ±20% or 24VAC ±20%
- Digital push-buttons zero and span adjustments
- NEMA 4X (IP66) enclosure rating
- Flow direction must be parallel to the sensor tip
- BTL complaint
Technical Specifications
Flow Rate Min
-
Supply Voltage Min
19.2V
Product Range
AVUL Series
Flow Rate Max
-
Supply Voltage Max
28.8V
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
