BPV-5
PNEUMATIC BALL VIBRATOR. ROHS COMPLIANT: YES

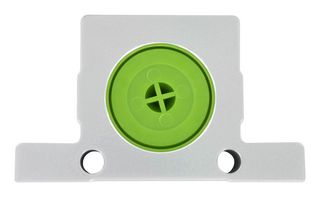

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 17 week(s)
| Quantity | Price |
|---|---|
| 1+ | $401.900 |
| 5+ | $381.810 |
| 10+ | $361.720 |
Price for:Each
Minimum: 1
Multiple: 1
$401.90
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerDWYER
Manufacturer Part NoBPV-5
Newark Part No.82AK8003
Technical Datasheet
SVHCTo Be Advised
Product Overview
BPV-5 is a series BPV pneumatic ball vibrator. The best choice for bridge-break in thin walls and small tanks. This model can be used in vibrating separators, vibrating conveyors, and against electroplating build-up. It can also be used on material compacted while packing or sand compacted while molding. The aluminum body is equipped with a steel ring and ball inside that is tightly closed by plastic side covers. Vibration is caused when the internal ball, pushed by compressed air, runs in a rotary motion to produce centrifugal force.
- Temperature limits of 212°F (100°C)
- Noise level range from 75 to 95dBA
- 1/4˝ BSPT female with 1/4˝ OD push to connect adapter on BPV5
- Aluminum housing material
Technical Specifications
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
