PRV-1
PNEUMATIC ROLLER VIBRATOR. ROHS COMPLIANT: YES
Image is for illustrative purposes only. Please refer to product description.
Available to Order
Manufacturer Standard Lead Time: 17 week(s)
| Quantity | Price |
|---|---|
| 1+ | $1,933.570 |
| 5+ | $1,836.890 |
| 10+ | $1,740.210 |
Price for:Each
Minimum: 1
Multiple: 1
$1,933.57
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerDWYER
Manufacturer Part NoPRV-1
Newark Part No.82AK7358
Technical Datasheet
SVHCTo Be Advised
Product Overview

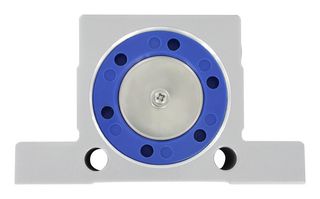

PRV-1 is a series PRV pneumatic roller vibrator. It has a high vibration frequency feature that can prevent material jams in pipe delivery. It can also be applied for bridge-break or concrete injection operation conditions. The special aluminum body is equipped with a roller and ring with multi-nozzles. It is tightly closed by plastic side covers. Vibration is caused when the roller pushed by compressed air runs in a rotary motion to produce centrifugal force.
- 1/8˝ BSPT female with 1/4˝ OD push to connect adapter on PRV1
- Noise level range from 75-100dBA
- Supply pressure range from 29 to 87psi (2 to 6bar)
- Temperature limit range from 212°F (100°C)
Technical Specifications
SVHC
To Be Advised
Technical Docs (1)
Legislation and Environmental
US ECCN:Unknown
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:To Be Advised
Download Product Compliance Certificate
Product Compliance Certificate
