TL52AF260Q
Tactile Switch, TL52 Series, Top Actuated, Through Hole, Round Button, 260 gf, 50mA at 12VDC

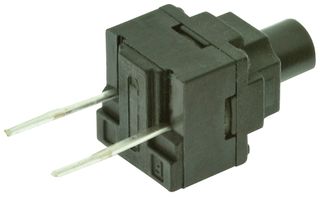

Image is for illustrative purposes only. Please refer to product description.
ManufacturerE-SWITCH
Manufacturer Part NoTL52AF260Q
Newark Part No.09R9916
Product RangeTL52 Series
Technical Datasheet
Available to Order
Delivery estimated post order confirmations.You will be charged on dispatch.
| Quantity | Price |
|---|---|
| 250+ | $0.727 |
Price for:Each (Supplied on Cut Tape)
Minimum: 5000
Multiple: 1000
$3,635.00
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerE-SWITCH
Manufacturer Part NoTL52AF260Q
Newark Part No.09R9916
Product RangeTL52 Series
Technical Datasheet
Switch TerminalsThrough Hole
Product RangeTL52 Series
Actuator OrientationTop Actuated
Switch MountingThrough Hole
Actuator StyleRound Button
Contact Current Max50mA
Contact Voltage DC Nom12V
Actuating Force260gf
Operating Force260gf
Contact Rating50mA at 12VDC
Switch Dimensions (L x W)8mm x 8mm
IP RatingIP67
IlluminationNon Illuminated
SVHCNo SVHC (27-Jun-2018)
Product Overview
The TL52 series through-hole Tactile Switch with SPST contact arrangement.
- 100000-cycle Operating life
- -25 to 85°C Operating temperature range
- IP67 Protection rating
- Radial leads
Applications
Test & Measurement, Medical, Consumer Electronics
Technical Specifications
Switch Terminals
Through Hole
Actuator Orientation
Top Actuated
Actuator Style
Round Button
Contact Voltage DC Nom
12V
Operating Force
260gf
Switch Dimensions (L x W)
8mm x 8mm
Illumination
Non Illuminated
Product Range
TL52 Series
Switch Mounting
Through Hole
Contact Current Max
50mA
Actuating Force
260gf
Contact Rating
50mA at 12VDC
IP Rating
IP67
SVHC
No SVHC (27-Jun-2018)
Technical Docs (3)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (27-Jun-2018)
