ANL-400
Fuse, Industrial / Power, ANL Series, 400 A, 32 VAC, 80 VDC, 22mm x 81mm, 0.88" x 3.19"

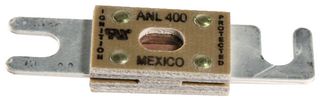

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEATON BUSSMANN
Manufacturer Part NoANL-400
Newark Part No.02B2087
Product RangeANL Series
Technical Datasheet
5 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $54.890 |
| 5+ | $54.890 |
| 10+ | $54.890 |
| 25+ | $54.890 |
| 50+ | $54.890 |
| 100+ | $54.890 |
Price for:Each
Minimum: 1
Multiple: 1
$54.89
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEATON BUSSMANN
Manufacturer Part NoANL-400
Newark Part No.02B2087
Product RangeANL Series
Technical Datasheet
Product RangeANL Series
Fuse Current400A
Voltage Rating VAC32VAC
Voltage Rating VDC80VDC
Fuse Size Metric22mm x 81mm
Fuse Size Imperial0.88" x 3.19"
Blow CharacteristicNon Time Delay
SVHCTris(4-nonylphenyl, branched and linear) phosphite (TNPP) with = 0.1% w/w of 4-nonylphenol, branched and linear (4-NP)
Product Overview
The ANL-400 is an ANL-series 400A 32VAC/80VDC non-time-delay Fuse with mica body, silver-plated copper link, it features low voltage limiter for use in isolating faults in lift trucks and battery operated systems, element visible through clear window to easily identify open status.
- 6000A VAC, 2700A VDC Interrupting rating
Applications
Safety
Technical Specifications
Product Range
ANL Series
Voltage Rating VAC
32VAC
Fuse Size Metric
22mm x 81mm
Blow Characteristic
Non Time Delay
Fuse Current
400A
Voltage Rating VDC
80VDC
Fuse Size Imperial
0.88" x 3.19"
SVHC
Tris(4-nonylphenyl, branched and linear) phosphite (TNPP) with = 0.1% w/w of 4-nonylphenol, branched and linear (4-NP)
