C5237-10

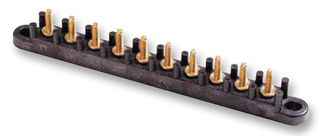

Panel Mount Barrier Terminal Block, 30 A, 10 Pole
Image is for illustrative purposes only. Please refer to product description.
Unable to Retrieve Availability Information
Product Information
ManufacturerEATON BUSSMANN
Manufacturer Part NoC5237-10
Newark Part No.49H4701
Technical Datasheet
Rated Current30A
Rated Voltage-
No. of Poles10 Pole
Line Side Connections Per Pole-
Line Side Connection Method-
Line Side Wire Size Max-
Load Side Connections Per Pole-
Load Side Connection Method-
Load Side Wire Size Max-
Product Range-
SVHCTo Be Advised
Product Overview
The C5237-10 is a Stud Type Junction Block with brass contacts. Numbers and arrows molded on top of barriers indicate terminals. It is made of thermoplastic with brass studs. Studs feature a "dog point" to guide nut onto thread.
Applications
Power Management
Technical Specifications
Rated Current
30A
No. of Poles
10 Pole
Line Side Connection Method
-
Load Side Connections Per Pole
-
Load Side Wire Size Max
-
SVHC
To Be Advised
Rated Voltage
-
Line Side Connections Per Pole
-
Line Side Wire Size Max
-
Load Side Connection Method
-
Product Range
-
Technical Docs (1)
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:To be advised
SVHC:To Be Advised
