FHN55W
Fuseholder, Panel Mount, Military, 250V, 30A, F02 and F03 Fuses, RFI Sheild

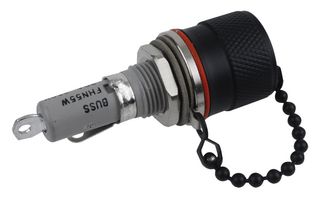

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEATON BUSSMANN
Manufacturer Part NoFHN55W
Newark Part No.70B1693
Product RangeFHN Series
Technical Datasheet
1 In Stock
Need more?
Same day shipping
Order before 9pm EST standard shipping
Available in quantity shown. To order more than shown inventory, contact sales
| Quantity | Price |
|---|---|
| 1+ | $419.900 |
| 5+ | $389.330 |
| 10+ | $364.870 |
| 25+ | $338.370 |
| 50+ | $317.980 |
| 100+ | $299.630 |
Price for:Each
Minimum: 1
Multiple: 1
$419.90
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEATON BUSSMANN
Manufacturer Part NoFHN55W
Newark Part No.70B1693
Product RangeFHN Series
Technical Datasheet
Fuse Holder TypeCartridge Fuse Holder
Fuse Current30A
Fuse Size Held1/4" x 1-1/4"
Holder TerminalsSolder Lug
No. of Fuses1Fuses
Product RangeFHN Series
Voltage Rating VAC250V
Voltage Rating VDC-
SVHCTo Be Advised
Product Overview
The FHN55W is a FHN-series 30A 250VAC/DC cartridge Fuse Holder with SDG-F per MIL-M-14 body, light gray diallyl phthalate knob molding, solder lug holder terminals, bayonet knob, brass with lusterless black finish, non-conductive surface shield cap and panel mounting. This holder prevents radio frequency interference, provides both shielding and grounding commercial equivalent. It features non-indicating, watertight, RFI shielding cap secured enclosure and used with military 1/4 x 1-1/4-inch fuses.
- 0.125" Maximum panel thickness
Applications
Safety
Technical Specifications
Fuse Holder Type
Cartridge Fuse Holder
Fuse Size Held
1/4" x 1-1/4"
No. of Fuses
1Fuses
Voltage Rating VAC
250V
SVHC
To Be Advised
Fuse Current
30A
Holder Terminals
Solder Lug
Product Range
FHN Series
Voltage Rating VDC
-
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
US ECCN:EAR99
EU ECCN:Unknown
RoHS Compliant:No
RoHS Phthalates Compliant:No
SVHC:To Be Advised
