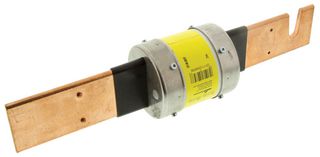

LPS-RK-600SP

The LPS-RK-600SP from Bussmann By Eaton is a 600VAC/300VDC, 600A, dual element, time-delay fuse. The ultimate protection Class RK1 current-limiting, dual element, non-indicating time-delay fuse is UL listed and CSA certified fuse with a 300KA Vac interrupting rating that exceeds requirements for virtually all applications. Current-limitation for maximum short circuit protection and reduced arc flash hazard. Easy selective coordination with all low-peak fuses using simple 2:1 ampacity ratio. It is used in feeder and branch circuits, motors, transformers, solenoids and general purpose circuits.

• Time delay of 10seconds (minimum) at 500% of rated current
• No damage type 2 protection for IEC and NEMA starters when properly sized
• High inrush current motor protection
• Time delay permits 130% FLA sizing for back-up motor overload protection & single phasing protection
• Low watt loss power consumption
• Electrically isolated end caps for additional safety

Applications

Power Management, Motor Drive & Control, Industrial
