C25BNB240A

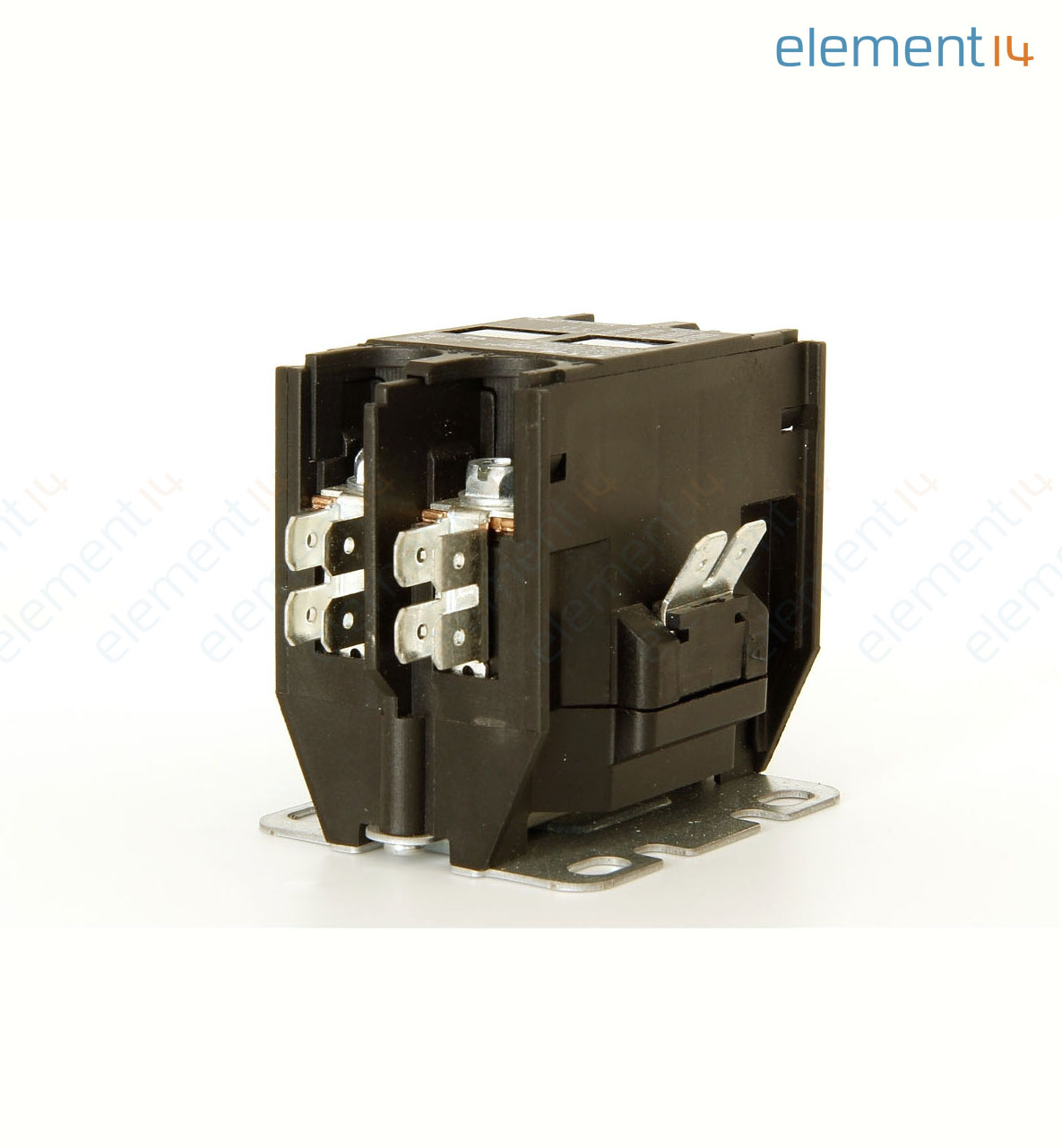

Contactor, 40 A, Panel Mount, 600 VAC, DPST, 2 Pole
- Manufacturer:
- EATON CUTLER HAMMER EATON CUTLER HAMMER
- Manufacturer Part No:
- C25BNB240A
- Newark Part No.:
- 46K2709
- Product Range
- C25 Series
- Also Known As:
- GTIN UPC EAN: 786685116075
- Technical Datasheet:
- C25BNB240A Datasheet
- ECAD / MCAD
-
Product Range Selector (C25 Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- 40A
- :
- Panel Mount
- :
- 600VAC
- :
- DPST
- :
- 2 Pole
- :
- -
- :
- 50A
- :
- 120V
- :
- -
- :
- 5.5kW
- :
- 50A
- :
- 40A
- :
- C25 Series
Technical Documents (7)
Product Overview
The C25BNB240A is a non-reversing Definite Purpose Contactor with DPST contact, binding head screw and quick-connect (side-by-side) power terminals. The type-C25 contactor features a compact, efficient design with a low VA coil and straight-through wiring. New contactor housing design effectively limits dust and other contaminants from magnet structure-reduces or eliminates noise. The ampere rated device is well suited for use in heating/air conditioning, refrigeration, data processing and food service applications.
- Double break current rated and HP/kW rated contacts
- Completely encased design impervious to dust and other environmental elements
- Class F, 155°C magnet coil
- Open with metal mounting plate enclosure
- 690V Insulation voltage
- -25 to 70°C Operating temperature range
Applications
HVAC
Also Known As
GTIN UPC EAN: 786685116075
